| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | T/T, PayPal |

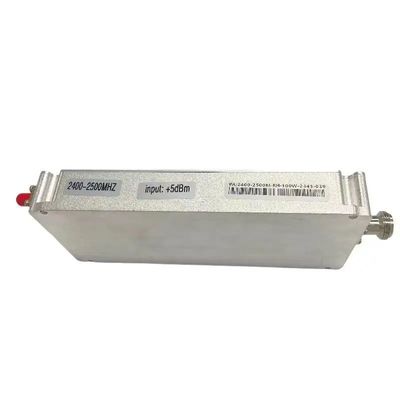

2400-2500MHz 100W RF Power Amplifier Module Without Signal Source for Fpv Dji Equipment with Temperature of Drone Detector
| Brand | PDFY |
|
Frequency
|
2400-2500mhz
|
|
Power supply
|
100W
|
|
Saturated output power
|
50±1dBm @input=5dbm
|
|
Gain
|
50±2dB
|
|
In-band fluctuation
|
≤2.0dB
|
|
Out-of-band spurious
|
9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz |
|
Input VSWR/Out VSWR
|
≤2
|
|
Gain temperature stability
|
≤±1.5dB
|
|
Working voltage
|
DC+32V
|
|
Protection
|
Temperature protection 90 degrees,Reverse Power 30W protection
|
|
Working current
|
≤8.5A
|
|

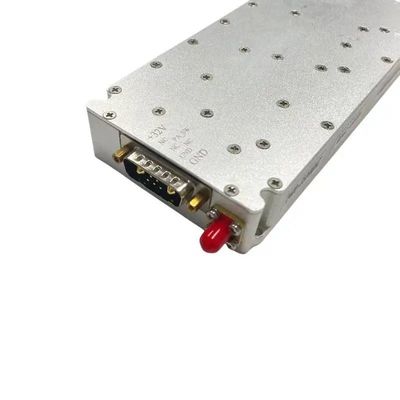

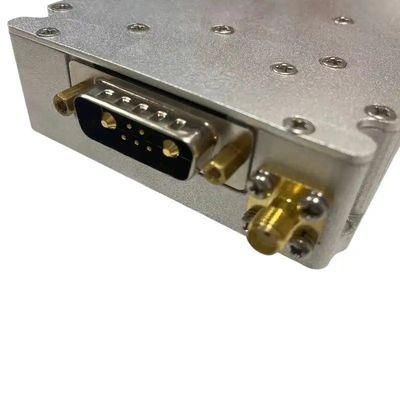

Power supply monitoring interface
|
Power supply: 7W2 power seat
A1:32V A2:GND Pin1: PA_SW (High power on, Low level off) Other pins:NC |
|
Iinput RF port
|
SMA
|
|
Output RF port
|
N-F
|
|

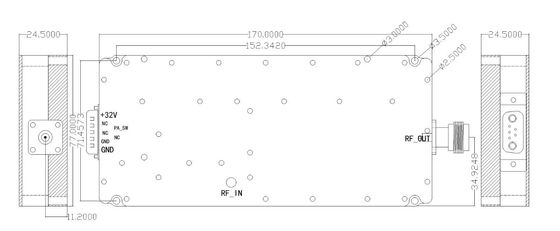

Dimensions
|
170*77*24.5mm
|
|
Working temperature
|
-20~+55ºC
|
Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.
Why Choose Us:
Experience: With years of experience in the anti-drone industry, we have a proven track record of success.
Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.
Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.
Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in
our mission to secure the skies
|
|
